Constructed from durable alloy steel and featured with the rugged design, our MARSHINE Heavy Duty Cable Pulley Hoist is capable of performing in the harsh construction environments. Where ever you apply this tool with, lifting the heavy machinery, moving the construction materials, or handling the large equipment, it can all delivers the outstanding performance and the reliability. Its advanced pulley system can ensures the smooth operation, and reduce the friction and the wear on cables while maximizing the efficiency.
Product Parameter
| Item Number | Model | Number of Sheave | Rated Load (kn) | Sheave Outer Diameter x Sheave Width (mm) | Rope Diameter (mm) | Weight (kg) | Hoisting Point Type | ||
| 11181 | QH1-1K | 1 | 10 | φ100x31 | φ7.7 | 2.8 | G | H | |
| 11182 | QH1-2 | 2 | 10 | φ80x28 | φ6 | 2.8 | G | H | |
| 11183 | QH1-3 | 3 | 10 | φ80x27 | φ6 | 4.1 | G | H | |
| 11191 | QH2-1K | 1 | 20 | φ120x35 | φ9.3 | 4.2 | G | H | B |
| 11192 | QH2-2 | 2 | 20 | φ100x31 | φ7.7 | 4.2 | G | H | |
| 11193 | QH2-3 | 3 | 20 | φ100x31 | φ7.7 | 6 | G | H | |
| 11201 | QH3-1K | 1 | 30 | φ150x39 | φ11 | 7 | G | H | B |
| 11202 | QH3-2 | 2 | 30 | φ120x35 | φ9.3 | 5.3 | G | H | |
| 11203 | QH3-3 | 3 | 30 | φ100x31 | φ7.7 | 6.5 | G | H | |
| 11211 | QH5-1K | 1 | 50 | φ166x40 | φ13 | 9.6 | G | H | B |
| 11212 | QH5-2 | 2 | 50 | φ150x39 | φ11 | 10.8 | G | H | |
| 11213 | QH5-3 | 3 | 50 | φ120x35 | φ9.3 | 7.7 | G | H | |
| 11221 | QH8-1K | 1 | 80 | φ205x50 | φ17 | 12.5 | G | H | B |
| 11222 | QH8-2 | 2 | 80 | φ166x40 | φ13 | 17 | G | H | |
| 11223 | QH8-3 | 3 | 80 | φ150x39 | φ11 | 17.5 | G | H | |
| 11231 | QH10-1K | 1 | 100 | φ246x60 | φ18.5 | 25 | G | B | |
| 11232 | QH10-2 | 2 | 100 | φ166x40 | φ13 | 18.5 | H | ||
| 11233 | QH10-3 | 3 | 100 | φ150x39 | φ11 | 20 | H | ||
| 11241 | QH15-1K | 1 | 150 | φ280x65 | φ21.5 | 34 | B | ||
| 11242 | QH15-2 | 2 | 150 | φ205x50 | φ17 | 22 | H | ||
| 11243 | QH15-3 | 3 | 150 | φ166x40 | φ13 | 26 | H | ||
| 11244 | QH15-4 | 4 | 150 | φ150x39 | φ11 | 30 | H | ||
| 11248 | QH20-4 | 4 | 200 | φ205x50 | φ17 | 50 | H | ||
Product Feature
Been built with the high-quality alloy steel, our MARSHINE Heavy Duty Cable Pulley Hoist is a reliable tool designed to handle the heavy loads with ease, and can ensures the long-lasting performance even in the harsh environments. Equipped with the precision-engineered pulleys and the bearings, this pulley hoist is able to provide the users with the smooth cable movement while reducing the friction and minimizing the wear on the cables. With its heavy duty capability and the compact design, this tool is easy to transport and can be used in various of the conditions.
Product Application
The MARSHINE Heavy Duty Cable Pulley Hoist is a versatile and powerful lifting tool that can be used for lifting and positioning the heavy construction materials such as the steel beams, concrete panels, and the precast elements, or for installing and maintaining the wind turbines, solar panels, and the other renewable energy systems, and is perfect for stringing and tensioning the overhead power lines and the communication cables. In addition, it is also suitable for assisting in the installation of the utility poles and the transformers.
Product Details
The details about the MARSHINE Heavy Duty Cable Pulley Hoist.
Place Of Origin:Zhejiang,China.

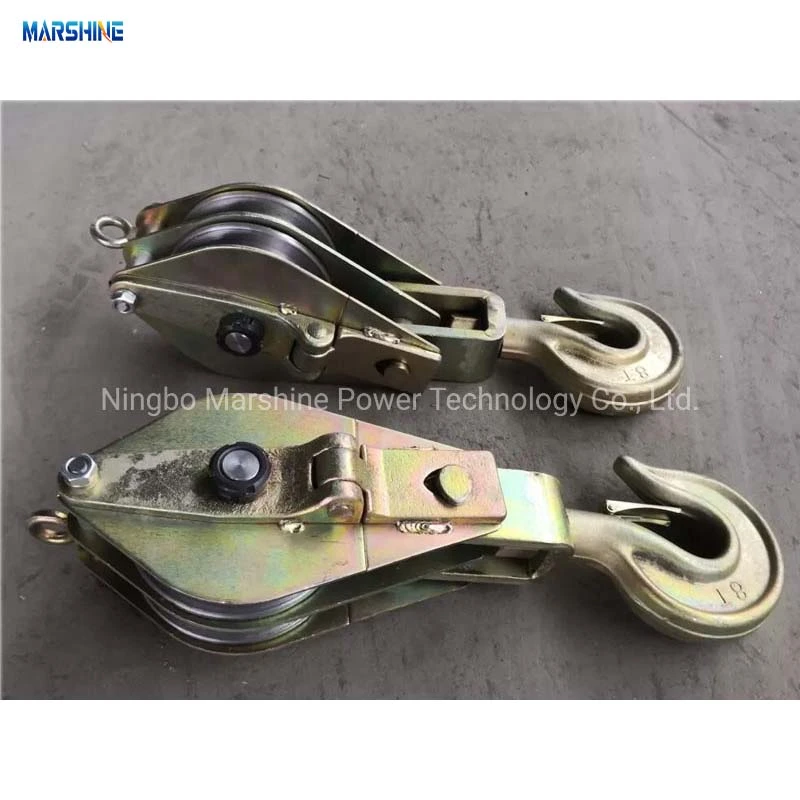

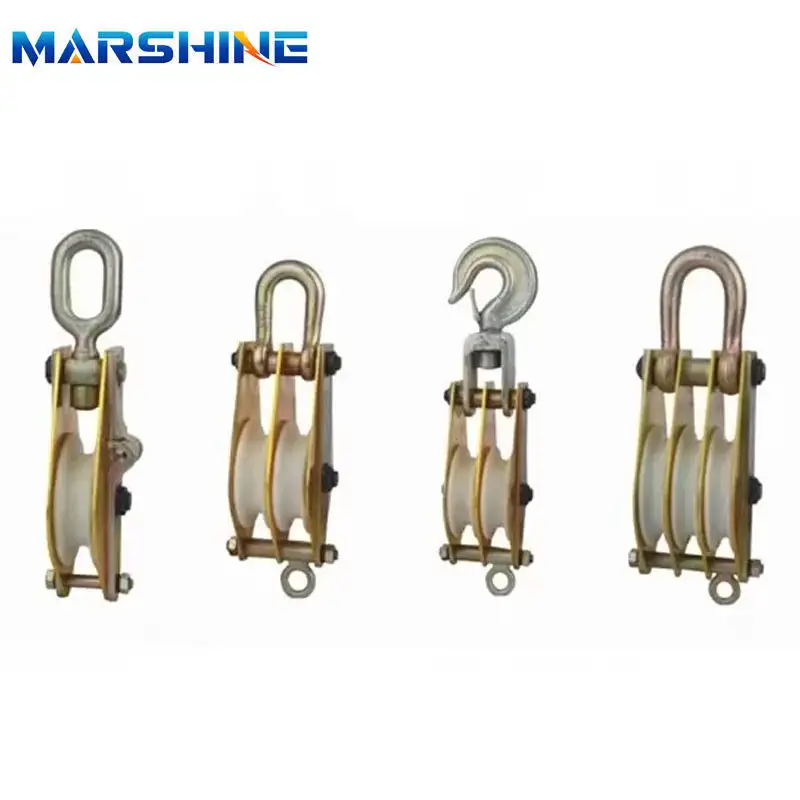

Feature: Types of lifting points: Hook type (G), round eye type (H), oblique hook type (B)..
Leading Time:15-20days.
Surface Treatment: Oxygenation.
Warranty:1year.
Rated Load: 10~200 Kn.
Certification:ISO9001.
Net Weight: 2.8~50kg.
